Stop forgetting. Stop searching. Fly with everything you need.
PreFlight Guard combines essential cockpit and preflight tools into one smart, organized bag — carbon monoxide monitoring, USB-C and USB charging, AA battery charging, headlamp charging, temperature and compass tools, and smart reed-switch detection that confirms every RBF item is back in the bag before you fly.
Built to complement your checklist — not replace it.
The Problem We Solve
ONE MISSED ITEM CAN END A FLIGHT
Every GA pilot knows the anxiety of climbing out and suddenly wondering: did I pull all the covers?
The pre-flight checklist has a gap no one talks about

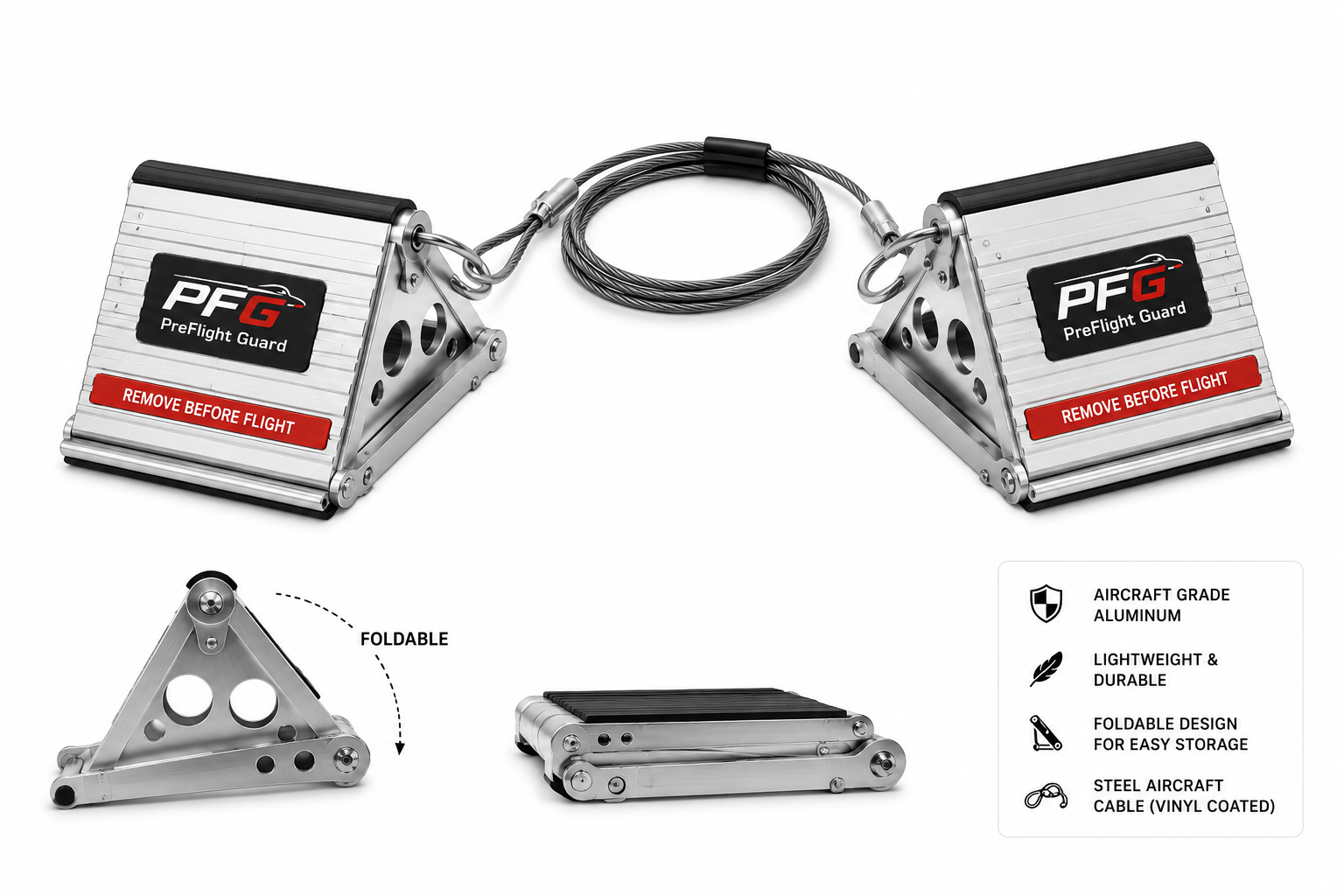

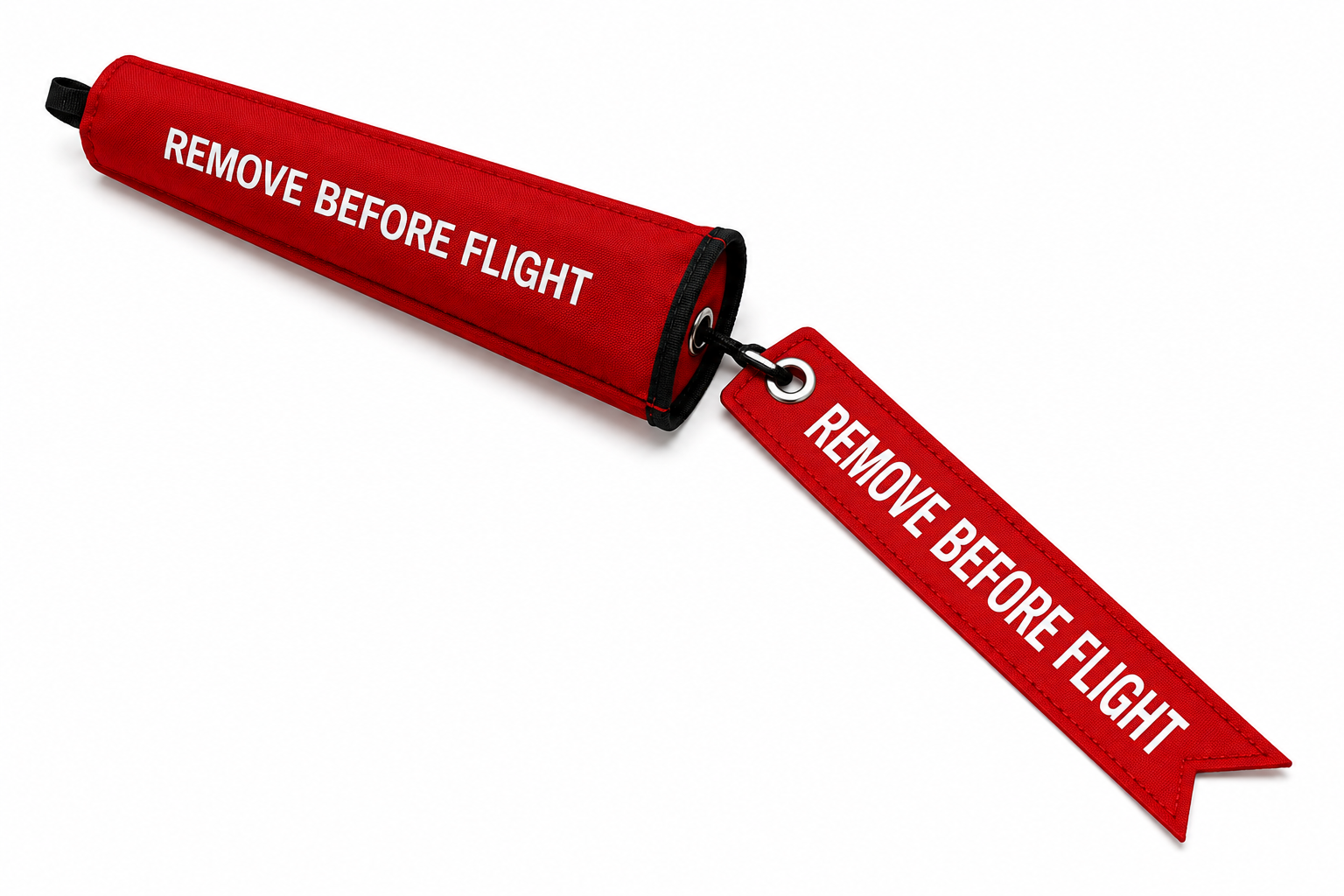

- Pitot covers, inlet covers, and tire chocks are easy to install — and easier to forget
- A single forgotten Remove Before Flight item can cause instrument failure, engine ingestion damage, or a runway incident
- Traditional checklists rely entirely on memory — there is no physical confirmation
- Distraction during pre-flight is universal — weather checks, passengers, ATC calls all compete for attention
- NTSB incident records cite retained RBF items as a contributing factor in accidents
PreFlight Guard gives you physical confirmation, every time
- Each RBF cover has an embedded magnet — the bag detects every item via reed-switch sensors
- The Smart Key Fob tells you exactly which item is missing by name on its OLED display
- A red LED alert and audible alarm fire the moment any slot shows a missing item
- 300ft BLE range means you get alerted before you ever reach the runway
- Built-in CO detector watches for carbon monoxide in the cockpit during flight
Side-by-Side
PRO vs PREMIUM
Both kits include full reed-switch detection and the Smart Key Fob. Premium adds more power, weather sensing, and a heavy-duty Cordura bag.
| Feature | ⬡ Pro Kit $349 early $499 retail |
★ Premium Kit $499 early $699 retail |
|---|---|---|
| Reed-Switch RBF Sensors | ✓ 6 sensors | ✓ 6 sensors |
| Smart Key Fob (OLED + CO + BLE) | ✓ Included | ✓ Included |
| BLE 5.0 Range | 300ft | 300ft |
| Fob Standby Battery Life | 25 days | 25 days |
| CO Detection (SPEC 3SP_CO_1000) | ✓ | ✓ |
| Magnetic Cockpit Mount Pad | ✓ | ✓ |
| Laser Engraved Tail Number | ✓ | ✓ |
| Built-in Power Bank | 10,000 mAh | 20,000 mAh |
| Bag Material | Compact Nylon / EVA | 1000D Cordura |
| Bag Dimensions | 14"×8"×6" | 18"×10"×8" |
| Digital Thermometer | — | ✓ Included |
| Compass | — | ✓ Included |
| Cordura Bag + Carabiner | — | ✓ Included |
| Early Pre-Order Price | $349 (was $499) | $499 (was $699) |
| 🔒 No payment today |
Early Pre-Order Pricing — limited availability. No payment collected today. Your spot is reserved at today's price.
Choose Your Kit
PRO & PREMIUM
Two versions, same core intelligence. Choose the level of power and protection you need.
- ✓6 RBF sensor covers with reed switch detection
- ✓Smart Bag — 14"×8"×6" compact durable nylon/EVA hard case
- ✓10,000 mAh permanent power bank (INR21700)
- ✓4-slot AA NiMH smart charger (permanent, built-in)
- ✓Removable Headlamp — white/red light, charges when docked
- ✓Smart Key Fob (OLED, CO sensor, fuel timer, 25-day standby)
- ✓Magnetic cockpit mount (neodymium)
- ✓BLE 5.0 hub — Nordic nRF52840, 300ft range
- ✓US 110V wall charger included
- ✓Custom EVA foam tray — dedicated slots
- ✓Laser engraved tail number personalization
- ✓Weight: ~820–900g (under 2 lbs)
- ✓6 RBF sensor covers with reed switch detection
- ✦Smart Bag — 18"×10"×8" Cordura 1000D tactical duffle
- ✦20,000 mAh permanent power bank — 2× Pro capacity
- ✓4-slot AA NiMH smart charger (permanent, built-in)
- ✓Removable Headlamp — white/red light, charges when docked
- ✓Smart Key Fob (OLED, CO sensor, fuel timer, 25-day standby)
- ✓Magnetic cockpit mount (neodymium)
- ✓BLE 5.0 hub — Nordic nRF52840, 300ft range
- ✓US 110V wall charger included
- ✦Digital thermometer — bag-powered, °F/°C toggle display
- ✦Analog magnetic compass — mounted on bag
- ✓Laser engraved tail number personalization

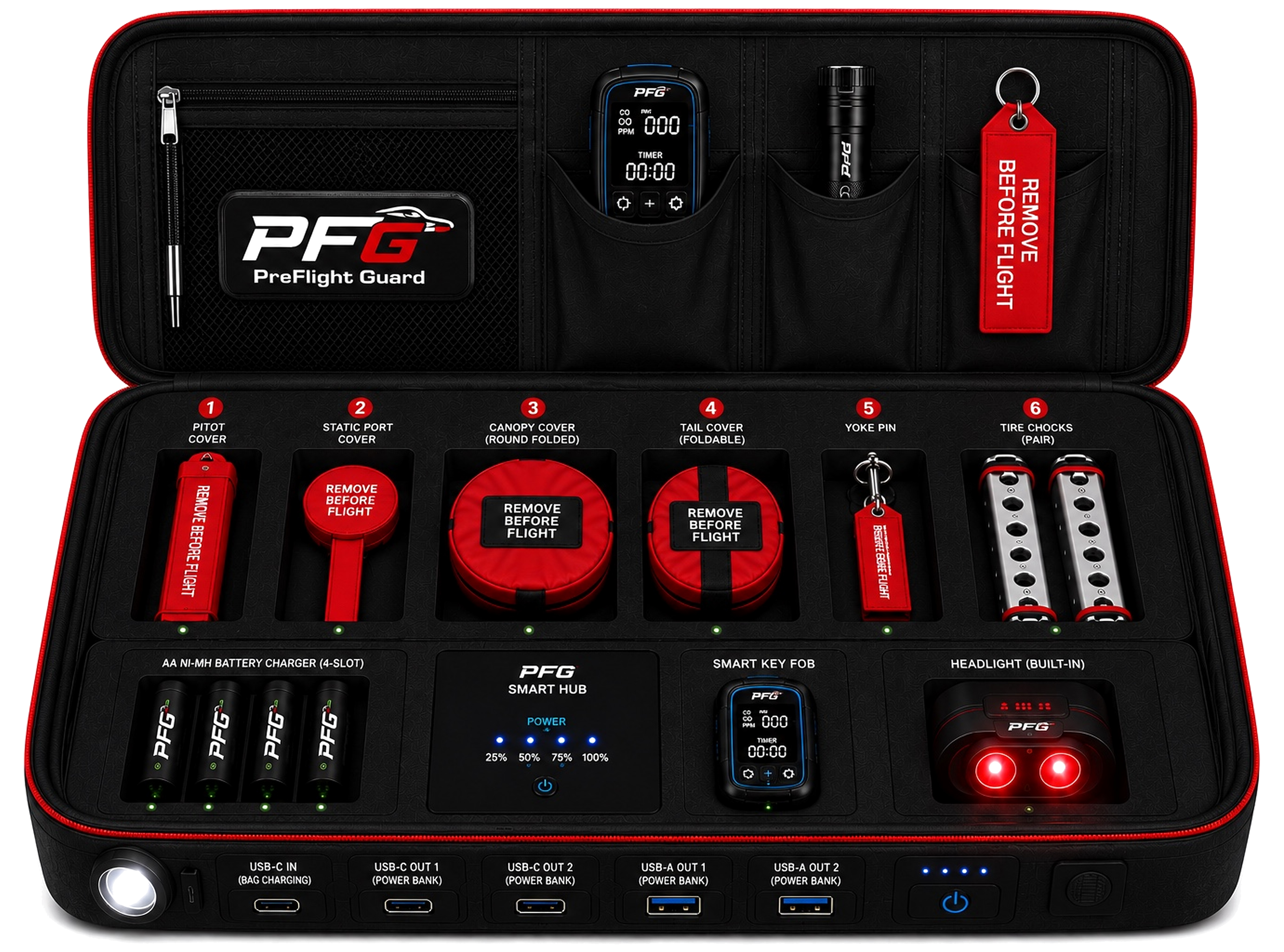

What's In The Box
KIT CONTENTS
Every slot has a name. Every item has a home. Every flight is confirmed safe.

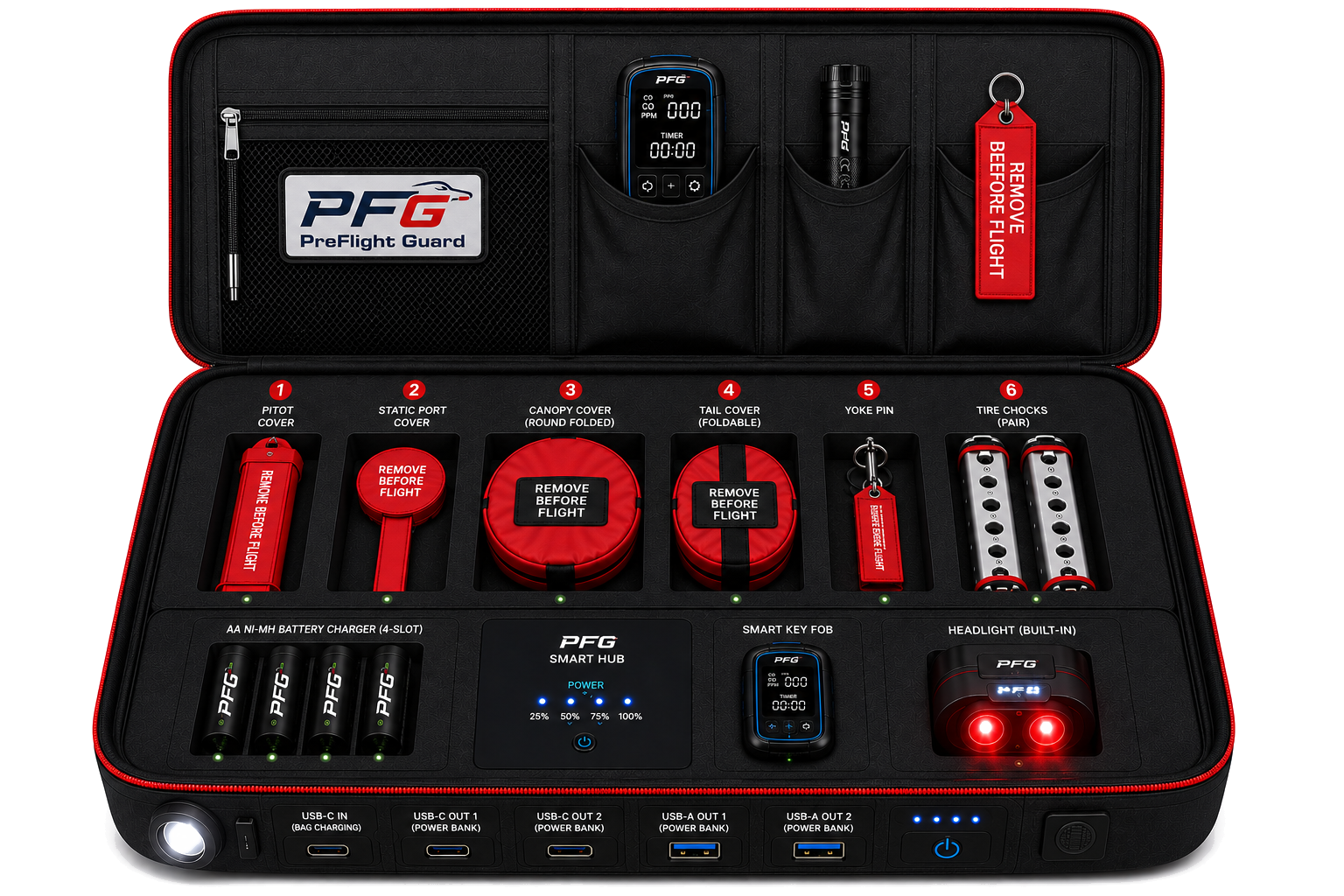

Smart Bag — 6 RBF Sensor Slots (Reed Switch Detection)
Smart Bag — Built-In Systems (Always Present)
Built into bag · Not removable
Built into bag · Not removable
Charges in Smart Bag dock
Included with both kits

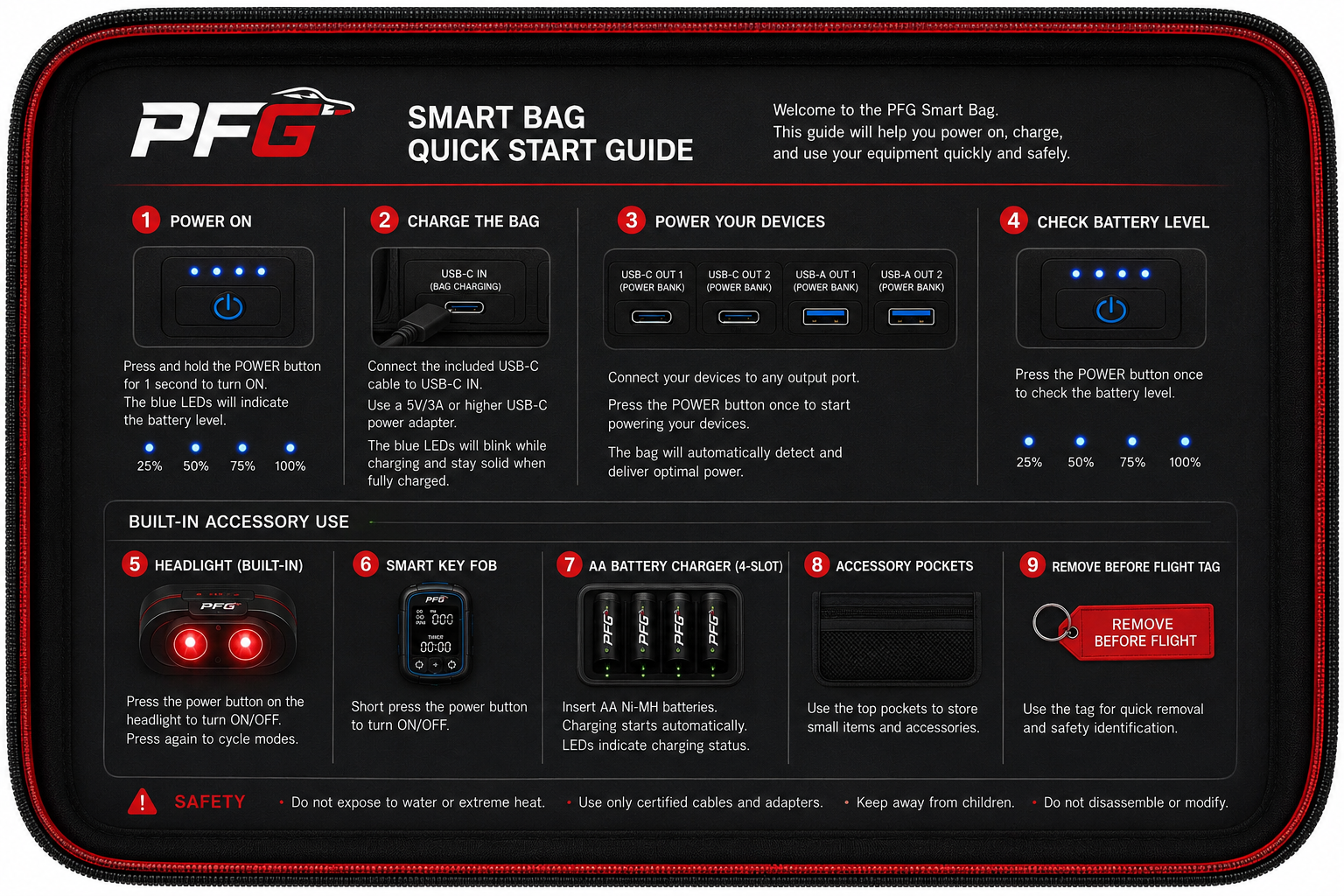

Setup in under 5 minutes
Additional Kit Items — Both Versions
BLE 5.0 · Magnetic cockpit mount
Steel plate on fob back
Plug in overnight — full kit ready
Premium Kit Exclusive — Additional Features
Smart Technology

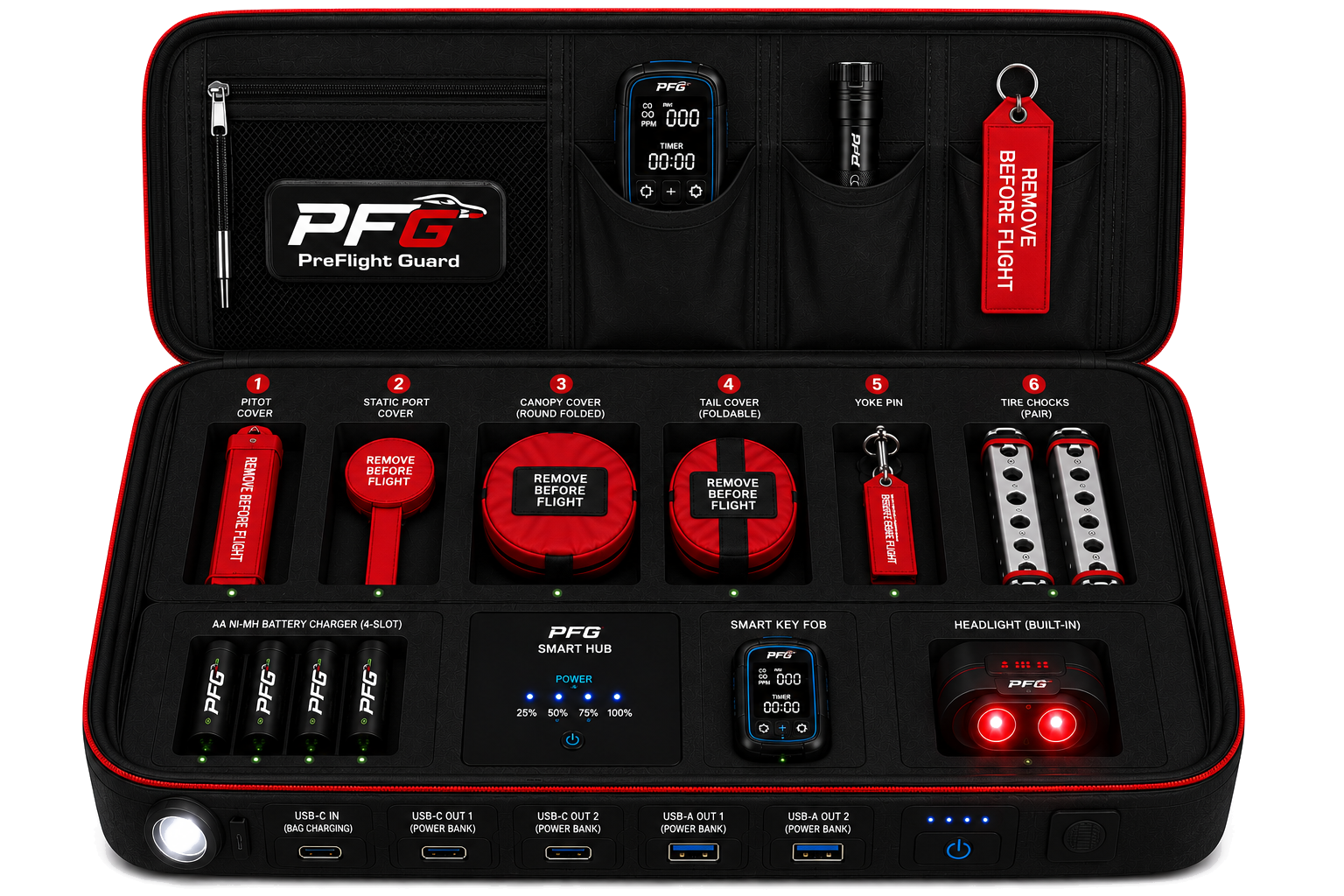

SMART BAG — ALL-IN-ONE SYSTEM
Two intelligent devices. One synchronized BLE system. Complete coverage from parking to takeoff.
- ✓6 reed switch sensors — one per RBF slot. Each RBF item contains an embedded magnet that activates the slot sensor when stored.
- ✓10,000 mAh power bank (INR21700 cell) — permanently installed, not removable

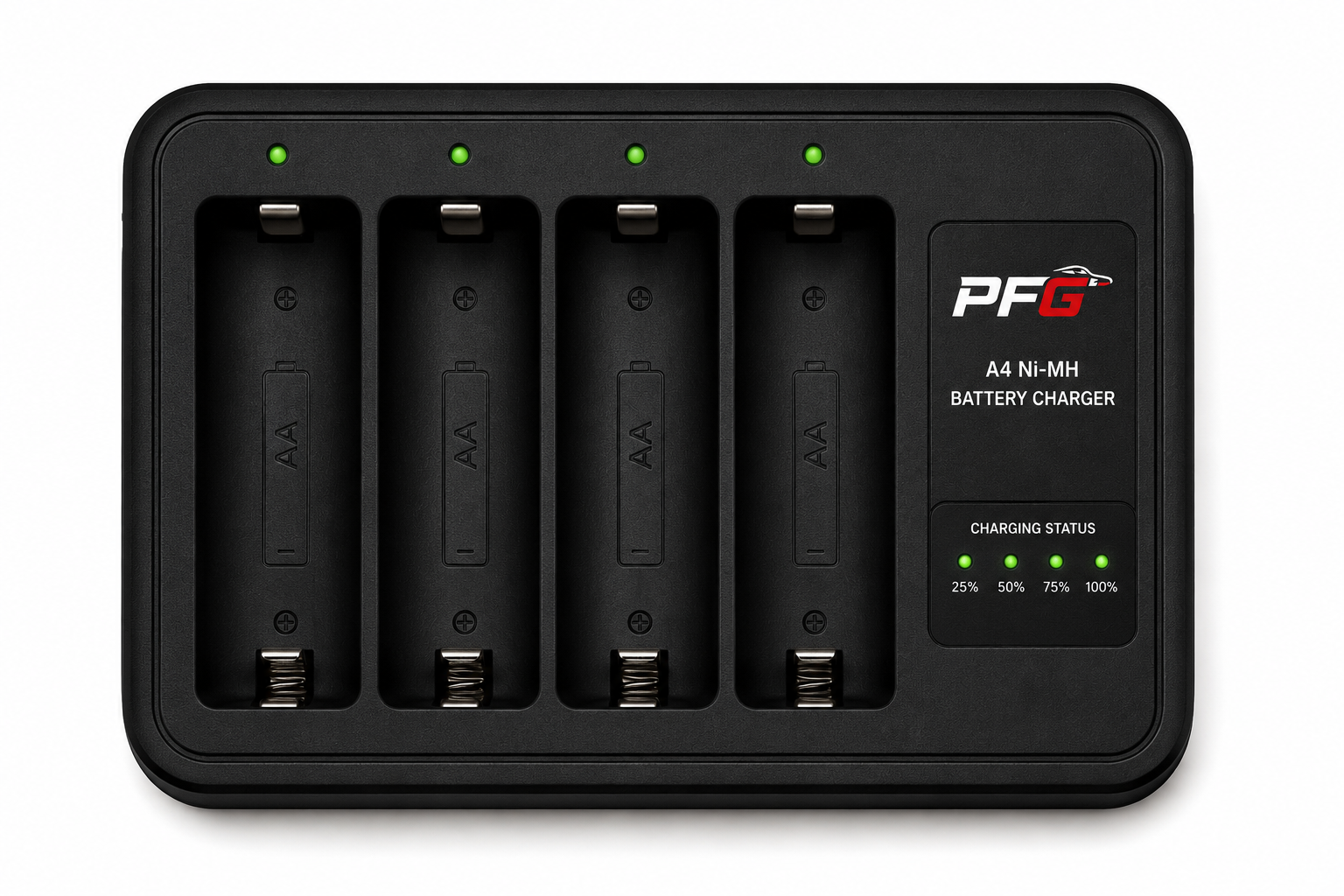

- ✓4-slot AA NiMH charger — auto shutoff, reverse polarity protection — permanently installed

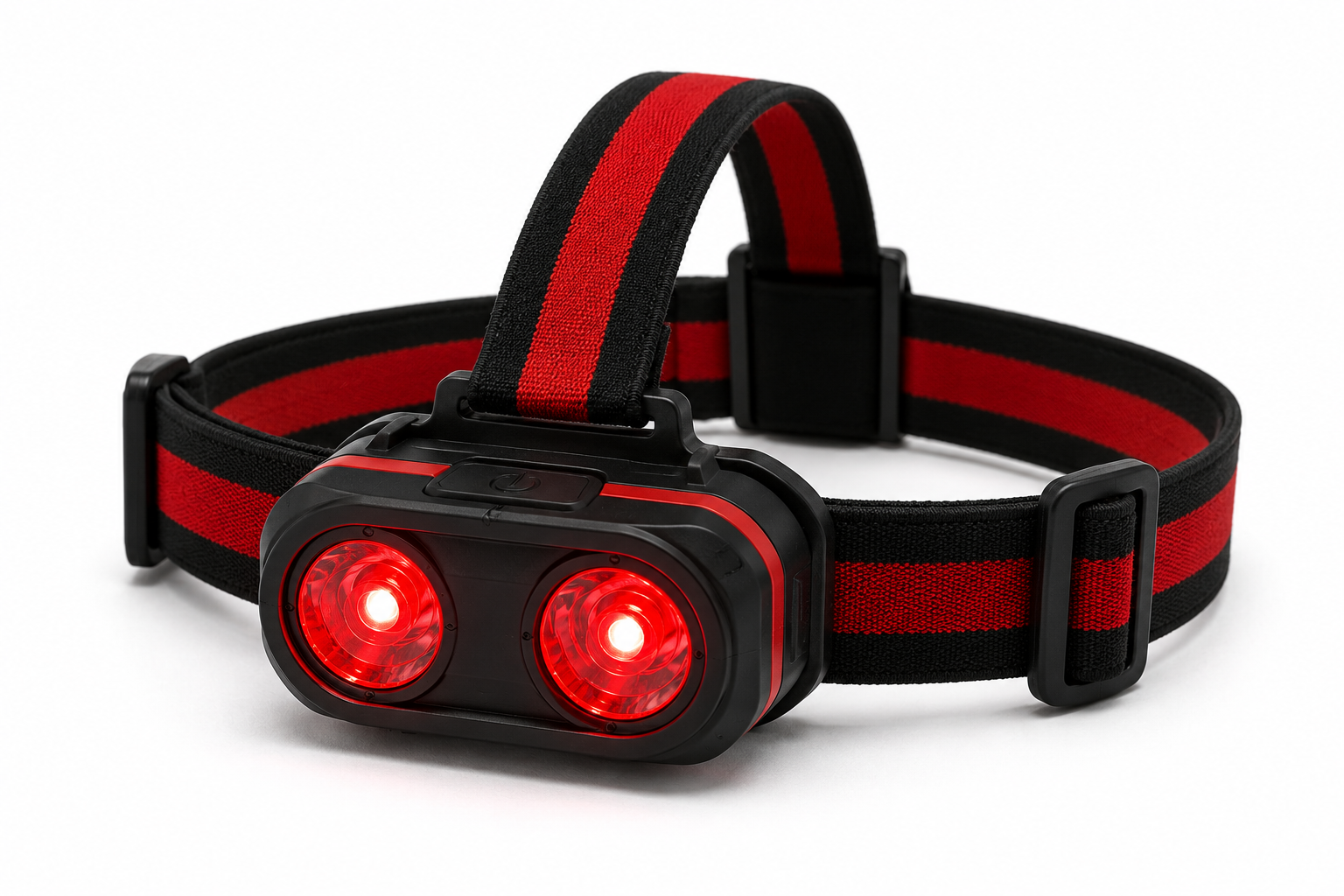

- ✓Removable Headlamp — white/red light, charges when docked
- ✓Key Fob charging dock — primary charge method for Smart Key Fob
- ✓BLE 5.0 hub (Nordic nRF52840) — 1-second update rate, 300ft open-area range
- ✓USB-A out: 5V/2.4A · USB-C I/O: 5V/3A for device charging
- ✓Custom EVA foam tray — 6 dedicated RBF slots + permanent component bays
- ✓Everything in Smart Bag Pro PLUS:
- ✦20,000 mAh power bank — double the Pro capacity, permanently installed

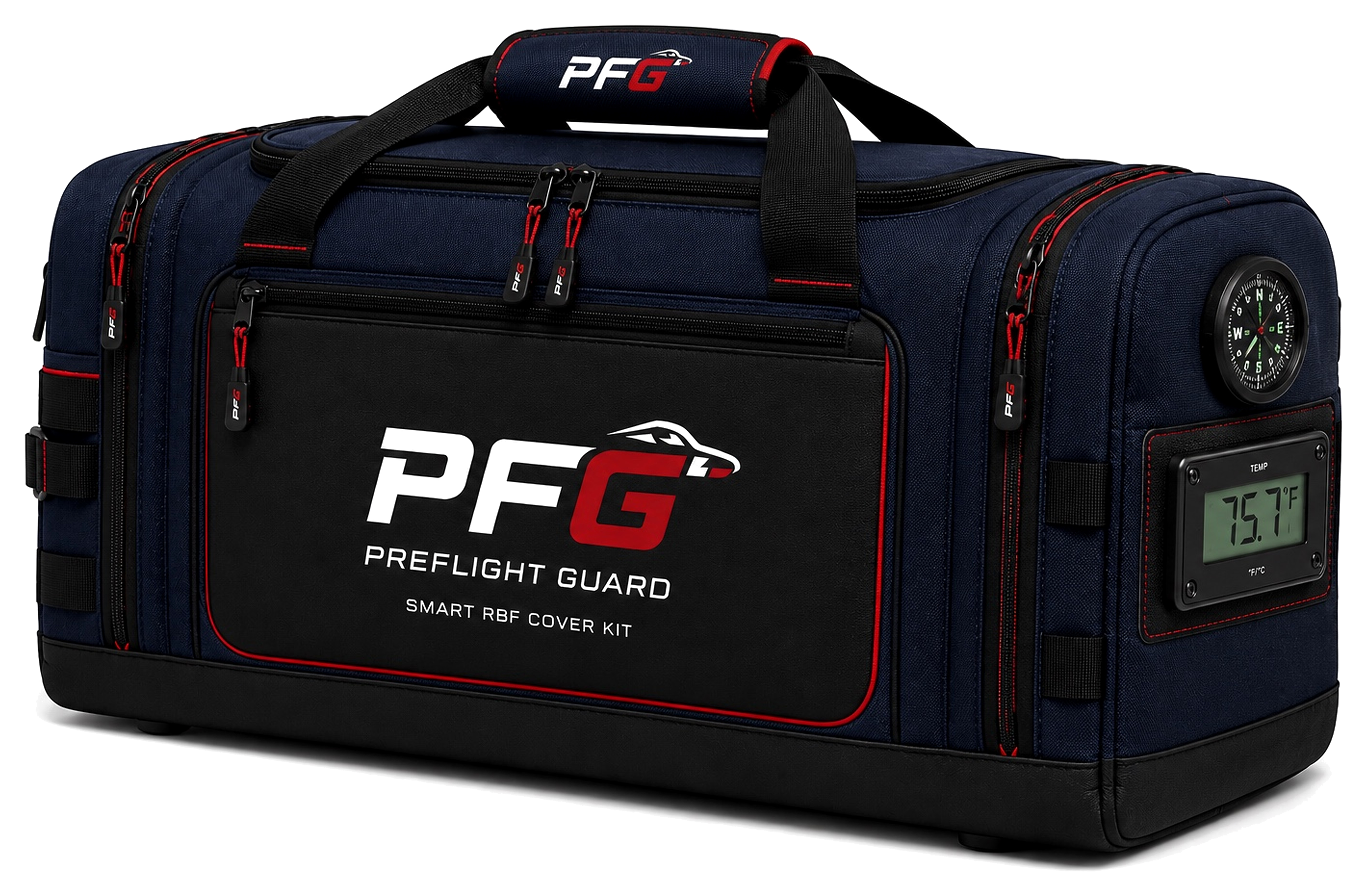

- ✦Cordura 1000D duffle bag — military-grade abrasion-resistant fabric, premium hardware
- ✦Larger interior — 18"×10"×8" for more storage and comfort
- ✦Digital thermometer — bag-powered, front panel display, °F/°C toggle
- ✦Analog magnetic compass — permanently mounted on bag exterior
- ✓All Pro bag features included: sensors, BLE hub, AA charger, Removable Headlamp, Key Fob dock
- ✓Operating temp: −10°C to +50°C · All-weather materials

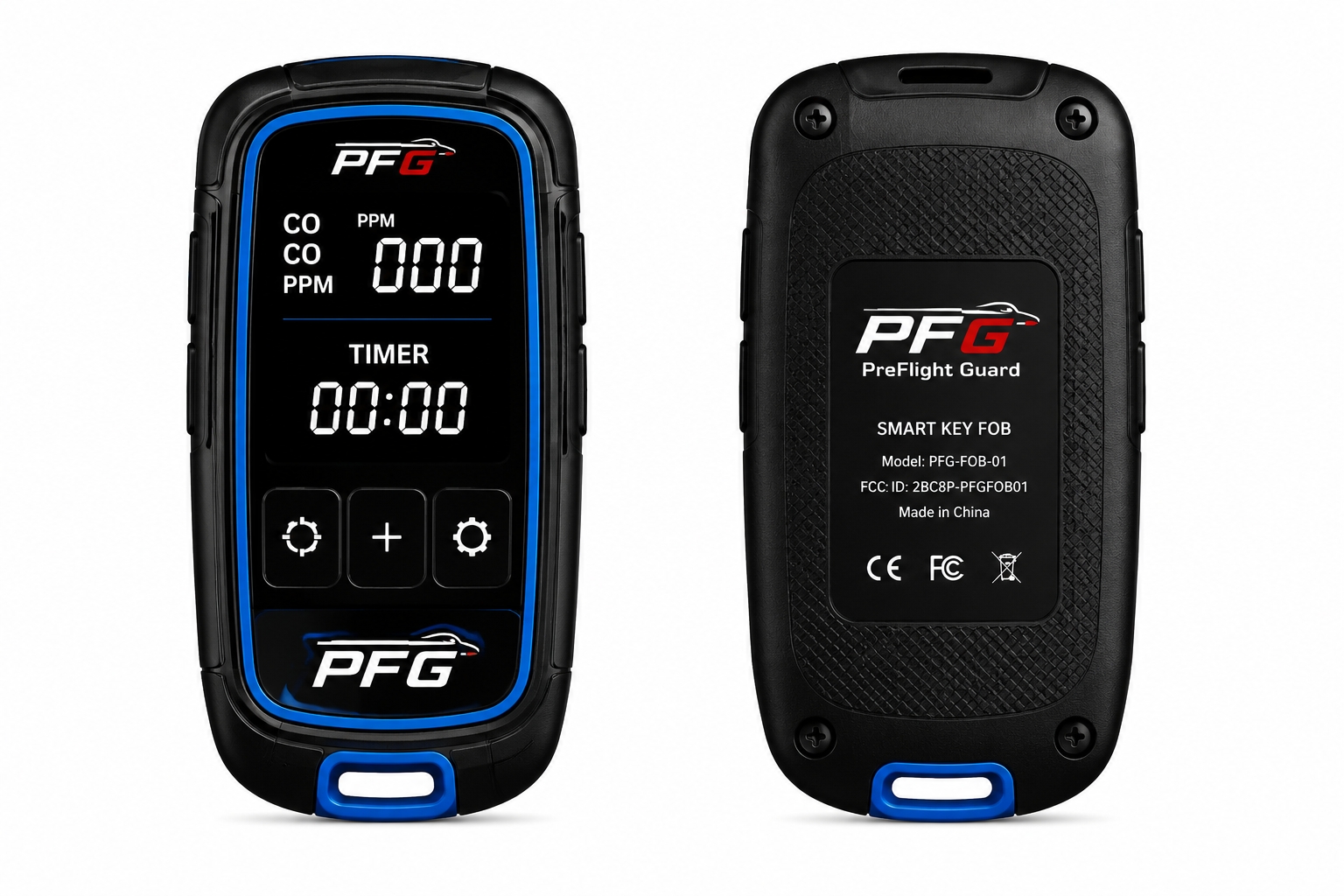

Smart Key Fob & Cockpit Mount
ALWAYS IN YOUR COCKPIT
The Smart Key Fob is your co-pilot. It mounts magnetically in your cockpit and monitors everything — in real-time, every second.

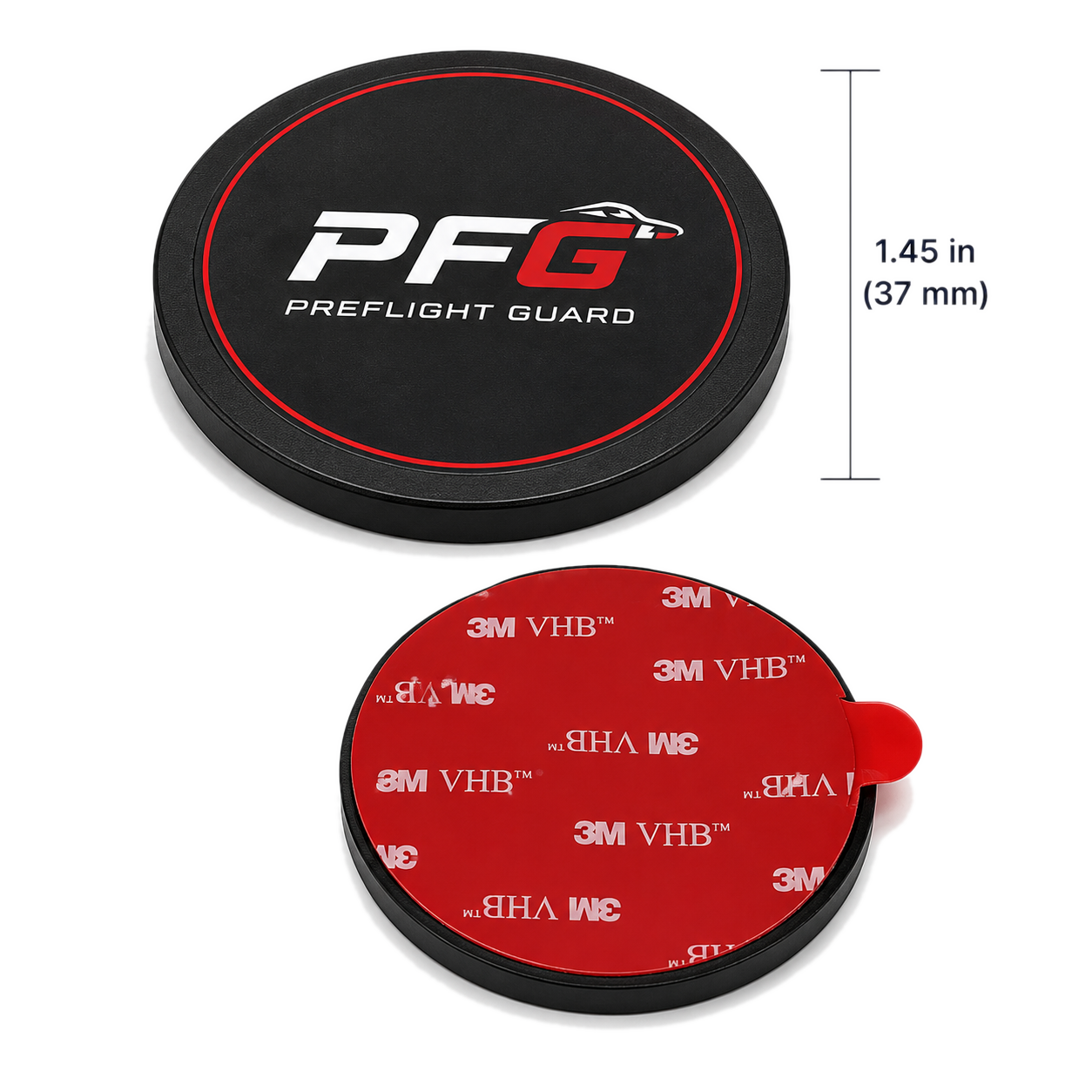

Magnetic Cockpit Mount
-
1Peel and stick the neodymium magnet mount pad to any flat cockpit surface — yoke column, panel, door, or center console.
-
2The Smart Key Fob has a steel metal plate permanently attached to its back.
-
3Snap the fob onto the cockpit mount — strong magnetic hold keeps it secure during flight.
-
4Remove instantly by pulling — no residue, no clips, no tools required.
Operation
HOW IT WORKS
Five steps. Every flight. Helps pilots prevent forgotten RBF items. The system is always on — you just need to listen.
Technical Data
TECHNICAL SPECIFICATIONS
| Specification | Pro Kit | ★ Premium Kit |
|---|---|---|
| Bag Size | 14" × 8" × 6" (355 × 200 × 150 mm) | 18" × 10" × 8" (457 × 254 × 200 mm) |
| Bag Material | Compact Durable Nylon/EVA Hard Case | Cordura 1000D Tactical Duffle |
| Power Bank Capacity | 10,000 mAh (INR21700 Lithium) | 20,000 mAh — 2× Pro capacity |
| Power Bank Installation | Permanently built into bag | Permanently built into bag |
| Detection Method | Reed Switch (magnet in cover → switch in foam slot) | Reed Switch (same system) |

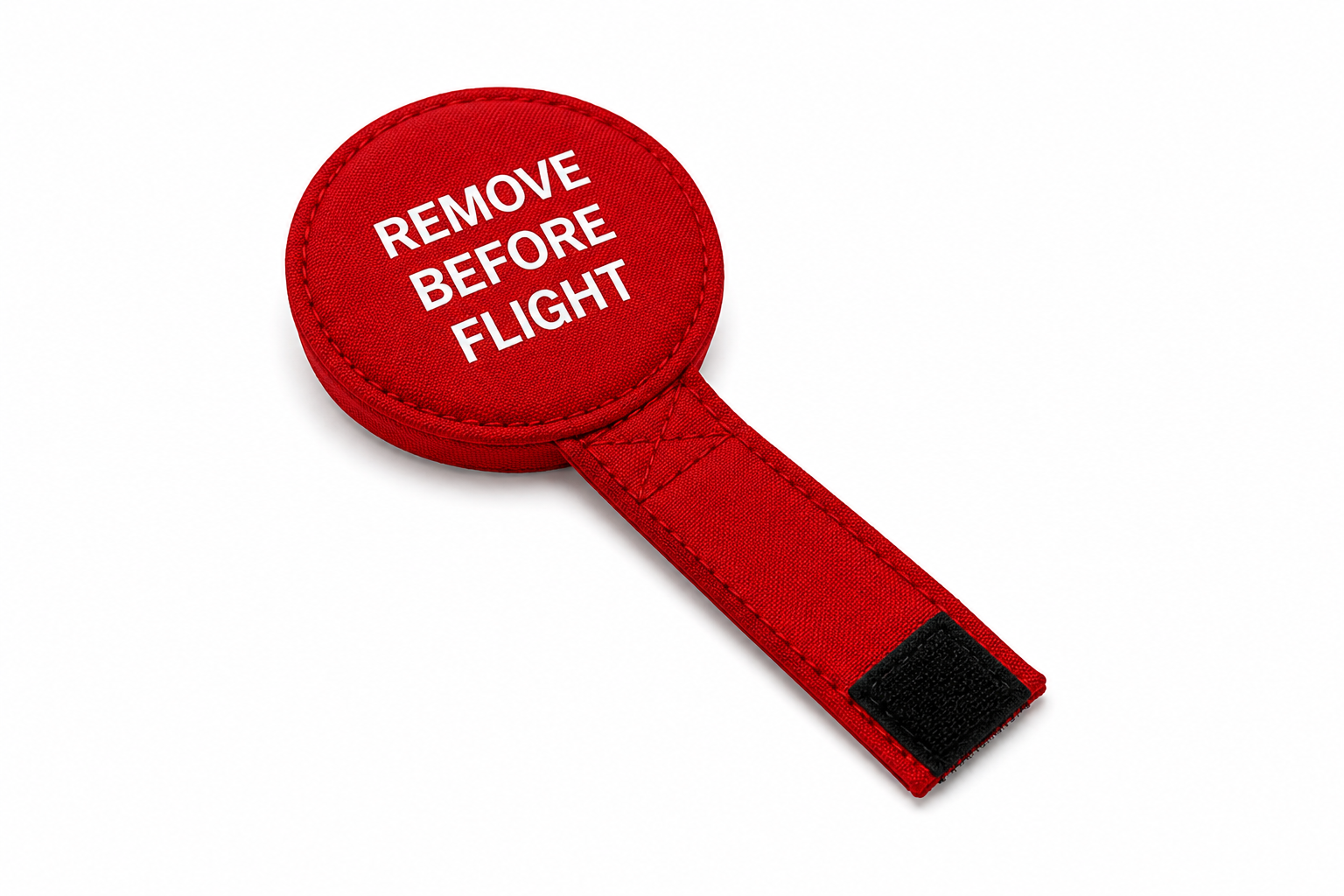

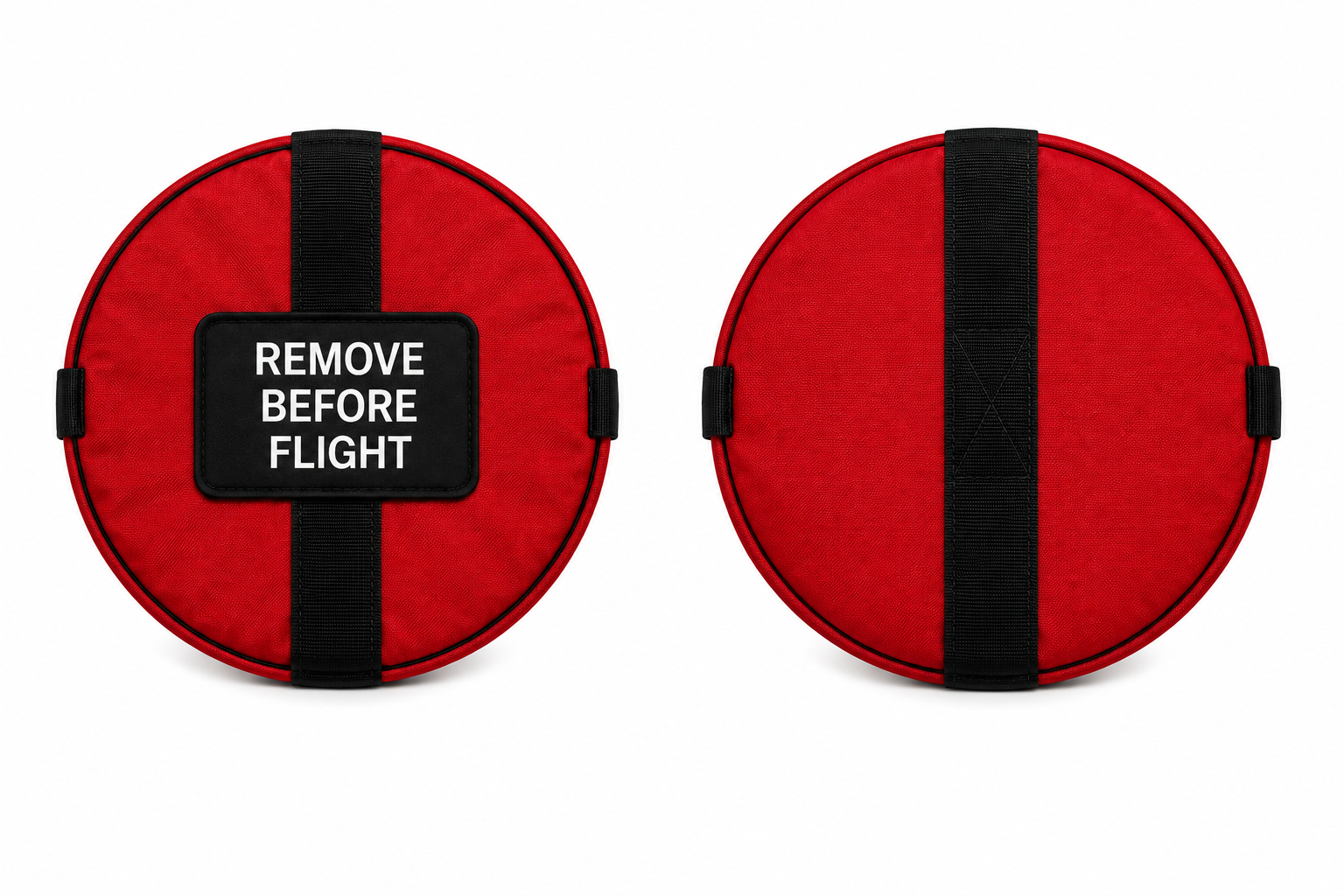

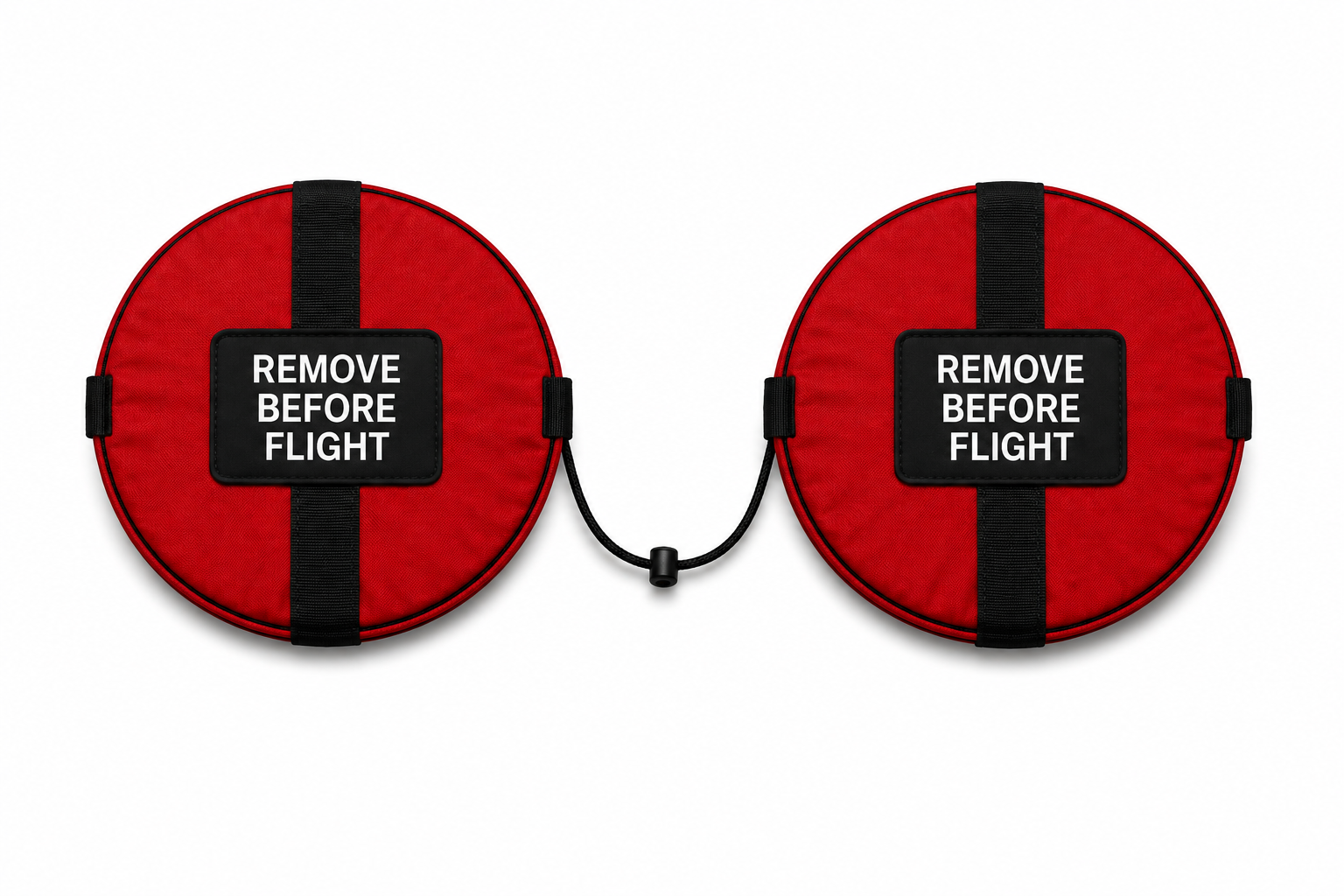

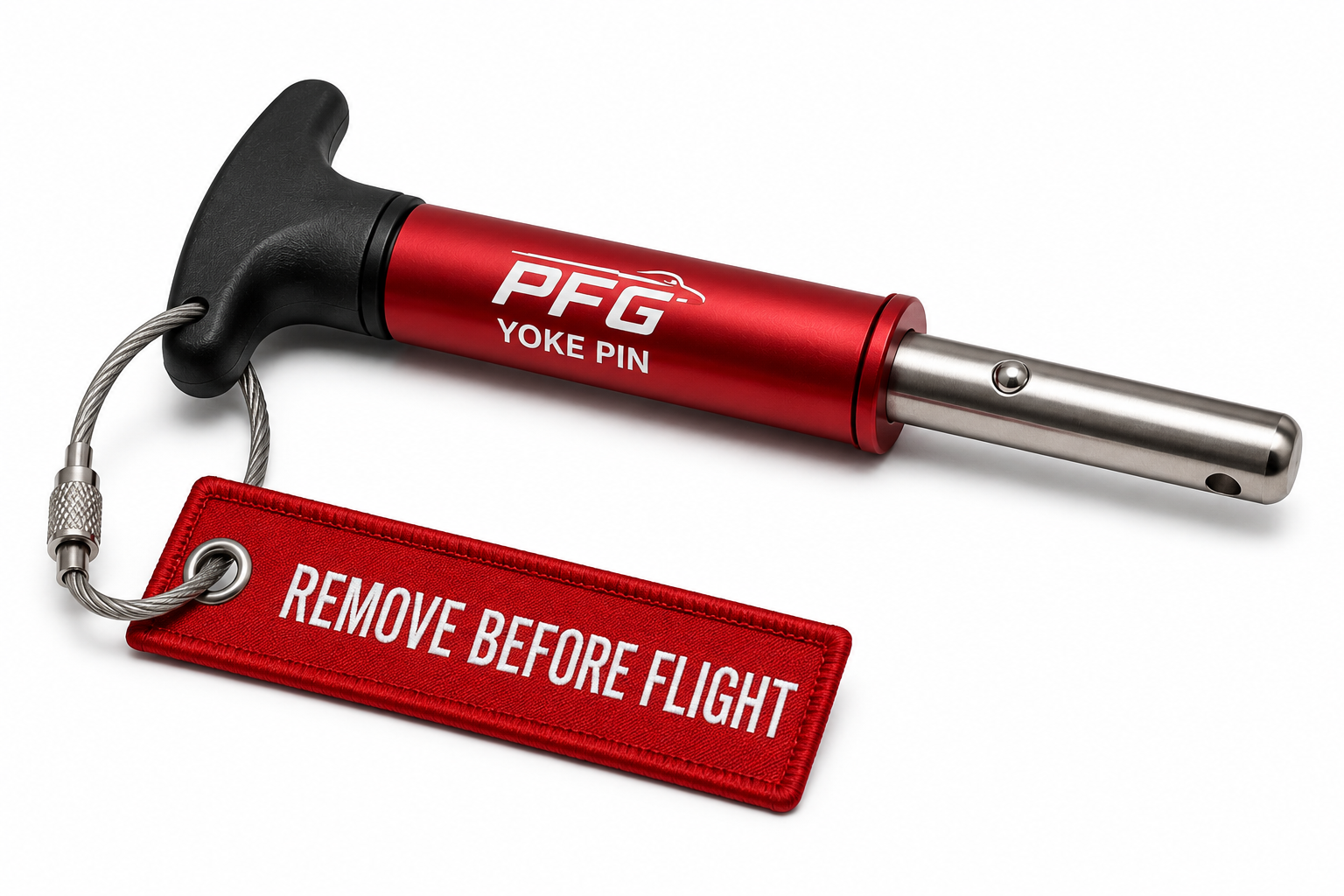

| RBF Sensor Slots | 6 slots (Pitot Cover, Static Port, Engine Inlet, Tail Cover, Yoke Pin, Tire Chocks) | 6 slots (same) |
| Wireless Protocol | BLE 5.0 — Nordic nRF52840 | BLE 5.0 — Nordic nRF52840 |
| Wireless Range | Up to 300 ft open area | Up to 300 ft open area |
| BLE Update Rate | 1-second interval | 1-second interval |
| USB-A Output | 5V / 2.4A | 5V / 2.4A |
| USB-C Input/Output | 5V / 3A | 5V / 3A |
| AA Charger | 4-slot NiMH · Auto shutoff · Reverse polarity protection · Permanent | Same — permanent |
| Headlamp | White/red light modes · Removable · Charges in dock | Same |
| Key Fob Display | OLED — shows item name when missing | OLED — shows item name when missing |
| CO Sensor | SPEC 3SP_CO_1000 electrochemical · ppm display · Warning at 35 ppm · Alarm at 200 ppm · 0–1,000 ppm range | Same |
| Fob Standby Life | 25 days continuous monitoring | 25 days continuous monitoring |
| Fob Charging | Primary: bag dock · Backup: USB-C port | Primary: bag dock · Backup: USB-C port |
| Cockpit Mount | Neodymium magnet pad (3M adhesive) + steel plate on fob | Same |
| Wall Charger | US 110V included | US 110V included |
| Digital Thermometer | — | ★ Bag-powered · °F/°C toggle display |
| Analog Compass | — | ★ Physical analog · Mounted on bag |
| Kit Weight | ~820–900g (under 2 lbs) | ~1.5–2.0 kg · Cordura 1000D duffle |
| Operating Temperature | −10°C to +50°C (14°F to 122°F) | −10°C to +50°C |
| Personalization | Laser engraved aircraft tail number | Laser engraved aircraft tail number |
| Certifications | Designed for FCC Part 15, CE, RoHS compliance — testing pending | Same — testing pending |
| FAA Status | Not FAA-certified aircraft equipment. Pilot reminder & organization aid only. | Same |
| Early Pre-Order Price | $349 (was $499) | $499 (was $699) |
Who It's For
DESIGNED FOR
EARLY PRE-ORDER
- 6-sensor Smart Bag (Compact Durable Nylon/EVA Hard Case · 14"×8"×6")
- 10,000 mAh permanent power bank
- Smart Key Fob (OLED, CO sensor, fuel timer)
- Magnetic cockpit mount
- 4-slot AA charger + Removable Headlamp
- US 110V wall charger included
- Laser engraved tail number
- Weight: ~820–900g
- Everything in Pro PLUS:
- 20,000 mAh power bank (2× Pro)
- Cordura 1000D duffle bag (18"×10"×8")
- Digital thermometer (bag-powered, °F/°C)
- Analog magnetic compass on bag
- Premium hardware & stitching
- Smart Key Fob (OLED, CO sensor, fuel timer)
- Magnetic cockpit mount
Not ready to order? Get notified when we launch:
Safety & Legal
IMPORTANT NOTICES
Product Limitation
PreFlight Guard is a pilot reminder and organization aid. It does not replace required aircraft checklists, preflight inspections, pilot judgment, or compliance with aircraft operating procedures.
CO Monitoring
CO monitoring is supplemental and not a substitute for certified aircraft equipment or required safety procedures.
Product Images
Images and renders are for illustration purposes only. Final production product may vary.
Specifications
Specifications are current design targets and may change before production. Certification testing and final compliance validation are required before mass production.
Patent & Regulatory Status
Status: Patent Pending · USPTO Application #64/058,283 · Type: Provisional 35 USC 111(b). Not FAA-certified aircraft equipment unless otherwise stated. Designed for FCC Part 15, CE, and RoHS compliance. Final certification testing pending.
Pre-Order Reservation
This is a reservation only. No payment is collected today. Smart Jet Aviation LLC will contact you to confirm your order when production opens. All prices in USD and subject to change.
Questions & Answers
FREQUENTLY ASKED QUESTIONS
Is this FAA-certified aircraft equipment?
No. PreFlight Guard is a pilot reminder and organization aid, not FAA-certified aircraft equipment unless otherwise stated. It does not replace any required preflight checklist or pilot-in-command responsibility.
Does it replace my preflight checklist?
No. PreFlight Guard supplements your preflight routine — it does not replace it. Always perform a complete preflight inspection per your aircraft's POH and applicable regulations.
Is payment collected today when I reserve?
No. This is a reservation only. No payment is collected today. We will contact you within 24–48 hours to confirm your reservation and will collect payment only when production opens.
What aircraft is it compatible with?
PreFlight Guard is designed for General Aviation aircraft. The fit of RBF covers depends on your aircraft type. Final cover sizes and compatibility will be confirmed with each order.
What is the difference between Pro and Premium?
The Pro Kit is compact (14"×8"×6", ~820–900g) with a 10,000 mAh built-in power bank and durable nylon/EVA hard case. The Premium Kit is larger (18"×10"×8", ~1.5–2.0 kg) with a 20,000 mAh power bank, professional 1000D Cordura duffle, a bag-powered digital thermometer, and an analog magnetic compass mounted on the bag exterior.
How does item detection work?
6 reed switch sensors — one per RBF slot. Each RBF item contains an embedded magnet that activates the slot sensor when stored. When an item is placed in its correct slot, the magnet closes the reed switch and marks the item present. When removed, that slot reports missing.
What happens if an item is missing?
The Smart Key Fob immediately shows the missing item name on the OLED display, the red LED activates, and an audible alarm triggers after a 60-second grace period if the item is not returned to its slot.
Can I personalize my kit with my tail number?
Yes. Each kit includes a laser-engraved tail number on the bag exterior (optional). Simply enter your N-number in the reservation form during pre-order. Engraving is included at no extra charge for early pre-order reservations.
Does the headlamp charge inside the bag?
Yes. The removable headlamp docks inside the Smart Bag and charges from the built-in power bank. Remove it for use; replace it when done to keep it charged and ready.
Are there fleet or bulk order options for flight schools and FBOs?
Yes. We offer fleet pricing for flight schools, FBOs, charter operators, and dealers. Contact us at hello@preflightguard.com to discuss bulk orders, custom branding, and volume pricing before the public launch.
When will PreFlight Guard ship?
The production timeline will be announced as prototype validation is completed. Reservation holders will be notified by email before any payment is requested. No payment is collected today.
